PRC 90 Cam-Lift Hinge With or Without Spring Assist
Polished Chrome Finish
 |

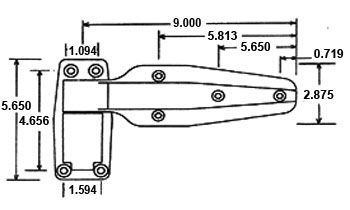

 Item Schematic |
ITEM DESCRIPTION

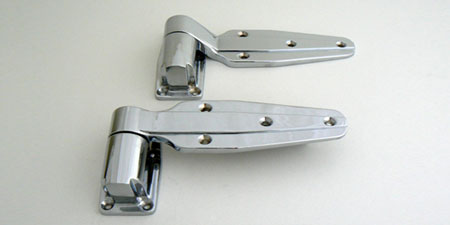

| PRC90 CAM-LIFT HINGE: Available with our without spring assist. The internal spring assist offers a life long maintenance free operation, with a clean line appearance. The self lubricating nylon cams feature a door hold dwell when doors open to 90 degrees. These Premco designed heavy duty hinges offer lasting, durable, easy operation on heavy doors. The high pressure zinc cast base and blade offers a lasting combination of service. These hinges are for use on either right or left doors. Premco hinges stand up under constant usage and all conditions. | |
(Click Part # to add item to your order form  ) |
|
| Part # | Description |
| PRC90-FC | High Pressure Zinc Cast Base and Blade. Cam-Lift Hinge w/ Flush Offset. Polish Chrome Finish. |
| PRC90-1 1/8C | High Pressure Zinc Cast Base and Blade. Cam-Lift Hinge w/ 1-1/8 " Offset. Polish Chrome Finish. |
| PRC90-1 1/4C | High Pressure Zinc Cast Base and Blade. Cam-Lift Hinge w/ 1-1/4" Offset. Polish Chrome Finish. |
| PRC90-1 3/4C | High Pressure Zinc Cast Base and Blade. Cam-Lift Hinge w/ 1-3/4" Offset. Polish Chrome Finish. |
| PRC90-1 3/8C | High Pressure Zinc Cast Base and Blade. Cam-Lift Hinge w/ 1-3/8 " Offset. Polish Chrome Finish. |
| PRC90-1 1/2C | High Pressure Zinc Cast Base and Blade. Cam-Lift Hinge w/ 1-1/2" Offset. Polish Chrome Finish. |
| PRC90-1 5/8C | High Pressure Zinc Cast Base and Blade. Cam-Lift Hinge w/ 1-5/8 " Offset. Polish Chrome Finish. |
| PRC90-SA-FC | High Pressure Zinc Cast Base and Blade. Internal Spring Assist Cam-Lift Hinge w/ Flush Offset. Polish Chrome Finish. |
| PRC90-SA-1 1/8C | High Pressure Zinc Cast Base and Blade. Internal Spring Assist Cam-Lift Hinge w/ 1-1/8 " Offset. Polish Chrome Finish. |
| PRC90-SA-1 1/4C | High Pressure Zinc Cast Base and Blade. Internal Spring Assist Cam-Lift Hinge w/ 1-1/4" Offset. Polish Chrome Finish. |
| PRC90-SA-1 3/8C | High Pressure Zinc Cast Base and Blade. Internal Spring Assist Cam-Lift Hinge w/ 1-3/8 " Offset. Polish Chrome Finish. |
| PRC90-SA-1 1/2C | High Pressure Zinc Cast Base and Blade. Internal Spring Assist Cam-Lift Hinge w/ 1-1/2" Offset. Polish Chrome Finish. |
| PRC90-SA-1 3/4C | High Pressure Zinc Cast Base and Blade. Internal Spring Assist Cam-Lift Hinge w/ 1-3/4" Offset. Polish Chrome Finish. |
| PRC90-SA-1 5/8C | High Pressure Zinc Cast Base and Blade. Internal Spring Assist Cam-Lift Hinge w/ 1-5/8 " Offset. Polish Chrome Finish. |
